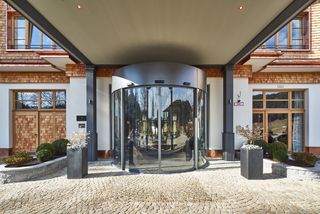

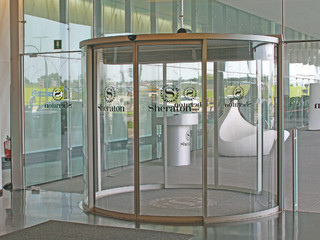

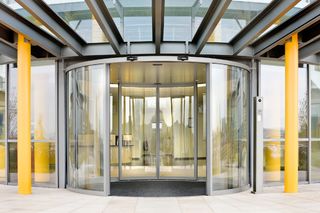

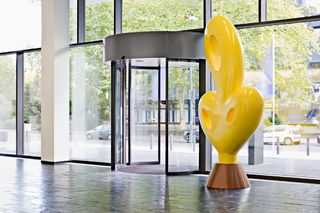

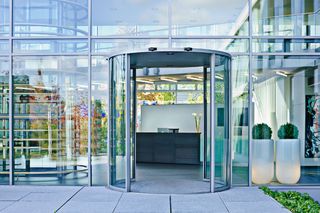

Slimdrive SCR * Automatic curved sliding door system for the realisation of 360° solutions

Slimdrive SCR One- and double leaf door systems. Interior and exterior doors with high access frequency. Sophisticated building entrances with plenty of daylight. Façades with narrow mullion transom constructions. Glass façades with the highest design standards. Vestibule systems, in combination with linear sliding doors.
  • Very quiet running, low-wear direct current drive solution with a height of only 7 cm
  • System consists of two drives that are controlled separately from each other
  • 40 % more opening width than with linear sliding door drives
  • Wide range of drive variants and equipment options possible
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
Show more
  • Freely configurable inputs and outputs for different functions
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
  • Various mechanical and electrical locks are optionally available
Contact us

Application Areas

  • 2- and 4-leaf door systems
  • Interior and exterior doors with high access frequency
  • Representative building entrances with large incidence of light
  • Façades with slim mullion-transom constructions
  • Glass façades with the highest design standards
  • Opening widths from 800 to 2500 mm possible
  • Door leaf weights up to maximally 120 kg
  • Suitable profile systems are fine-framed profile systems with ISO and mono glass and all-glass systems (GGS)

Technical data

Slimdrive SCR
For escape and rescue routes Yes
Barrier-free Yes
Adjustable opening speed (ventilation) Yes
Adjustable closing speed Yes
Opening width 2-leaf 800 mm - 2500 mm
Clear passage height 3000 mm
Canopy height (min.) 75 mm
Leaf weight (max.) 1-leaf 120 kg
Leaf weight (max.) 2-leaf 120 kg
Radius (min.) 1000 mm
Radius (max.) 2000 mm
Moving leaf version 10 mm LSG, Special glass on request
Side elements version 10 mm LSG, 22 mm panel lining, Special glass on request
Surface Powder-coated according to RAL, Anodised light alloy E6/EV1, colour anodised according to sample, Coated with polished stainless steel, coated with grit 240 stainless steel, special coating on request
Version of roof structure optical sheet metal covering, waterproof roof with waterspout, Glass roof
Illumination with roof variant, not possible with glass roof
Floor covering Entrance mat, Entrance mat according to customer wishes
Hot-air curtain system possible, depends on the ceiling construction
Off-centre façade connection Yes
Special functions on request Yes
Operation Programme switch DPS, Programme switch TPS, Control via building management system
Standard conformity DIN 18650, EN 16005
