Slimdrive EMD

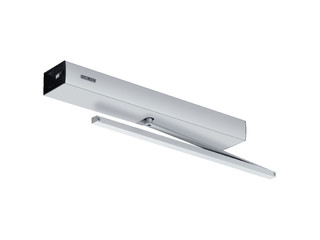

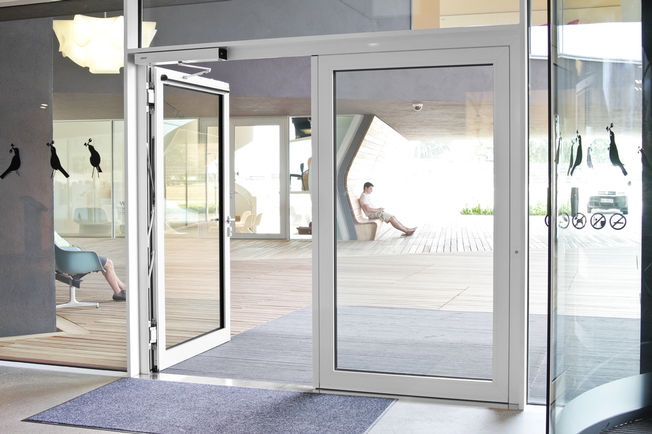

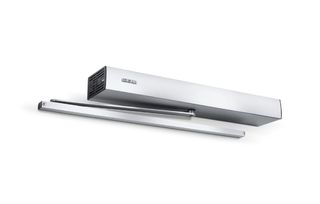

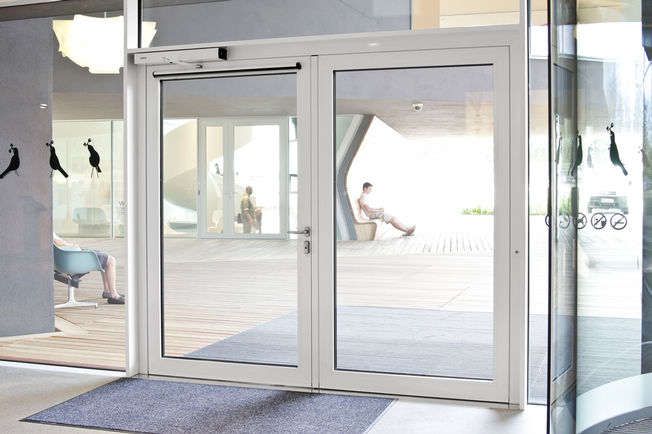

Slimdrive EMD * Electromechanical swing door drive with only 7 cm height for single leaf doors up to 180 kg

Slimdrive EMD
  • Opening and closing speed can be individually adjusted
  • Electrical latching action which accelerates the door shortly before the closed position
  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
  • Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
  • Obstacle detection detects an object through contact and stops the opening or closing process

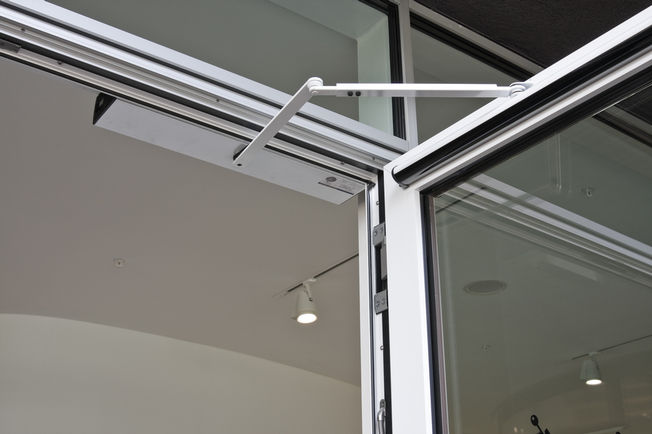

  • Automatic reversing detects an obstacle and returns to the opening position
Show more
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf
  • Drive can be used with roller guide rail or link arm
Contact us

Application Areas

  • Single-action, single leaf, right and left closing doors
  • Single-action doors up to 1400 mm leaf width and 180 kg weight
  • Interior and exterior doors with high access frequency

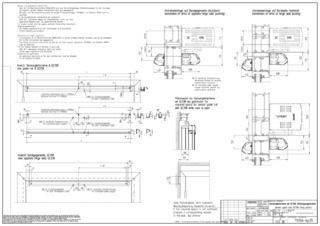

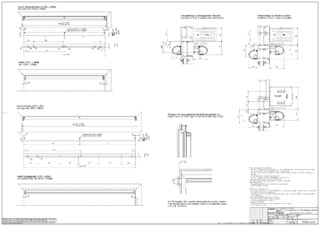

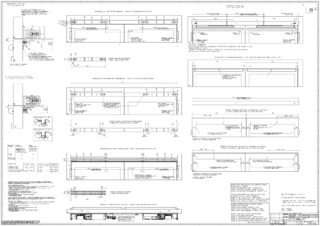

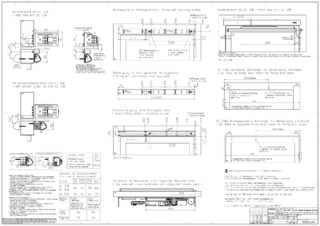

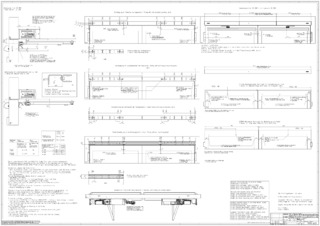

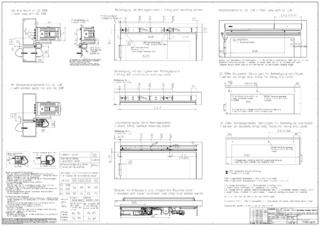

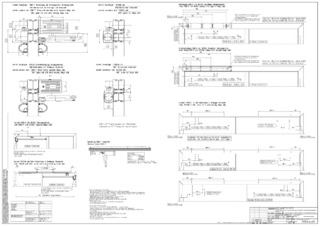

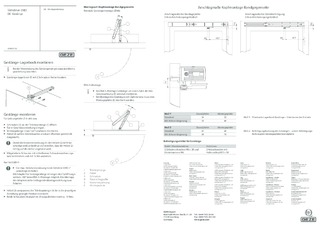

  • Door leaf installation and transom installation

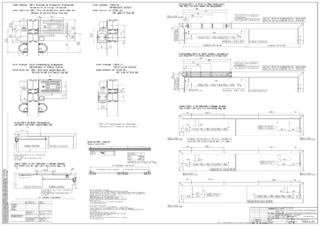

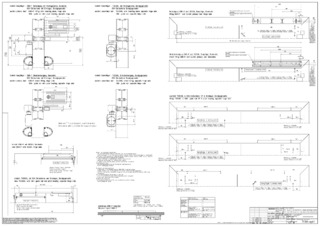

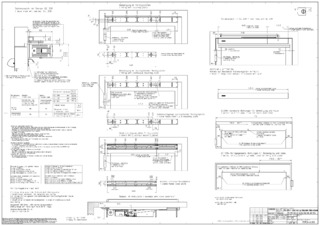

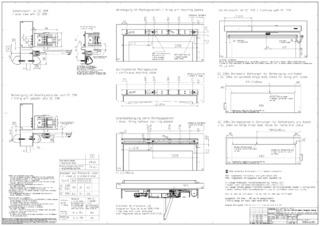

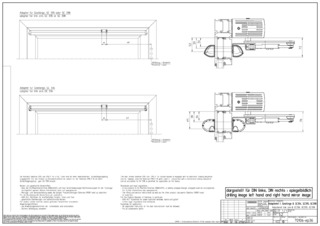

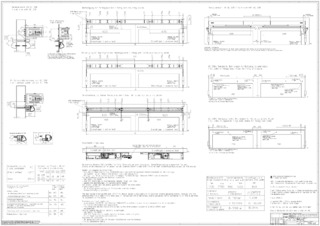

Technical data

Slimdrive EMD
Height 70 mm
Depth 121 mm
Leaf weight (max.) 1-leaf 180 kg
Distance centre door hinge-drive axis (min.-max.) 2-leaf 1500 mm - 2800 mm
Leaf width (min.-max.) 750 mm - 1400 mm
Reveal depth (max.) 400 mm
Door overlap (max.) 30 mm
Drive type Electromechanical
Opening angle (max.) 130 °
DIN left Yes
DIN right Yes
Transom installation opposite hinge side with link arm Yes
Transom installation opposite hinge side with roller guide rail Yes
Transom installation hinge side with roller guide rail Yes
Door leaf installation hinge side with roller guide rail Yes
Electrical latching action Yes
Electrical closing sequence control Yes
Disconnection from mains Main switch in the drive
Activation delay (max.) 20 s
Operating voltage 230 V
Power rating 230 W
Power supply for external consumers (24 V DC) 1000 mA
Service temperature -15 - 50 °C
IP rating IP20
Mode of operation Off, Automatic, Permanently open, Shop closing, Night
Type of function Fully automatic
Automatic function Yes
Low-energy function Yes
Key function Yes
Vestibule function Yes
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch DPS, Programme switch integrated in the drive
Parameter setting GEZEconnects (PC + Bluetooth), Service terminal ST 220, Programme switch DPS
Standard conformity DIN 18650, EN 16005
