Radar movement detectors

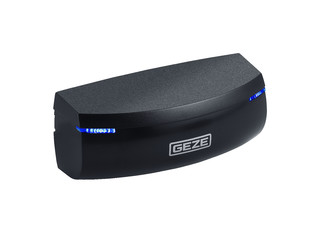

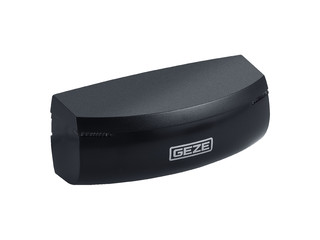

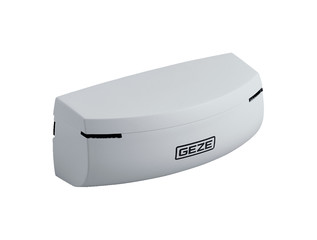

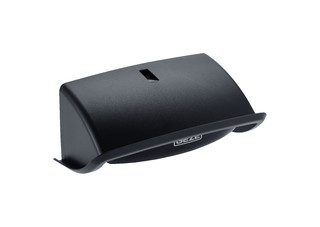

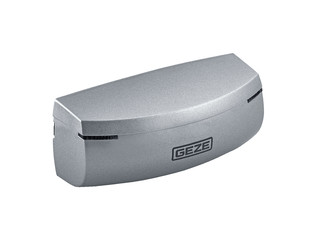

GC 308 Radar movement detector with individual adjustment option for activating automatic doors
- Individual settings for challenging environmental conditions
- Configuration possible via push buttons or remote control
- Compact dimensions, suitable for 7 cm profile heights
- Integrated motion tracking also records slow movements
- Movement direction detection and cross-traffic fade-out reduces energy consumption in the building
- Door opening impulse only triggered if needed
Radar movement detector with individual adjustment option for activating automatic doors
Application Areas
- Activation of automatic swing and revolving doors
- Interior and exterior doors
Installation situations in reference objects and videos

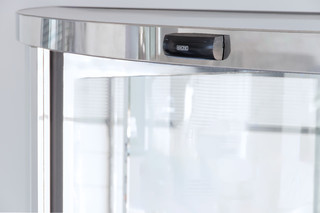

GC 308 on Revo.PRIME revolving door
The GC 308 R for automatic swing door systems and revolving doors sets new standards with its compact design and simplified commissioning. Particularly in buildings characterized by high levels of public traffic, it is important to avoid unwanted door openings by optimizing cross-traffic fade-out. © GEZE GmbH
Technical data
| GC 308 | |

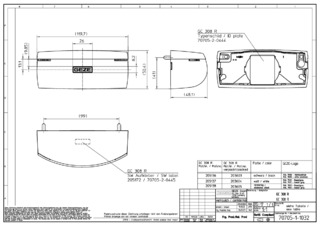

| Dimensions | 120 x 50 x 50 mm |
| Technology | Electromagnetic radar waves |
| operating voltage | 12-24 V DC +30% /-10% / 12-24 V AC ± 10% |
| Operating current | 100 mA |
| Output | Potential-free relay contact |
| IP rating | IP54 |
| Cable connection type | System plug-type connector |
| Connection cable length | 2500 mm |
| Installation height (min.) | 1800 mm |
| Installation height (max.) | 4000 mm |
| Transmission frequency | 24.15 GHz |
| Weight | 120 g |
| Service temperature | -20 - 55 °C |
| Approvals | RED 2014/53/EU, RoHS 2011/65/EU |
