Panic locks for tubular framed doors

IQ lock EL * Electro-mechanical motor lock for the combination with swing door drives on single leaf doors

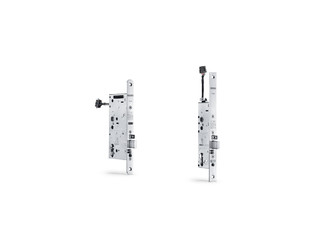

IQ lock EL
  • Motor-driven unlocking of the door in less than one second
  • Mechanical self-locking ensures automatic crossbar projection every time the door is closed
  • Panic function which opens (even locked) emergency exits in the direction of escape
  • Divided cross latch prevents the bolt from locking even under side-load
  • Electric sequential control ensures secure locking of the door
  • Various modes of operation for every possible situation
Show more
  • Integrated feedback contacts make complete monitoring of the door possible
  • Optional sabotage monitoring or cylinder contact
  • Small rear backset and small dimensions of the lock case
Contact us

Application Areas

  • Single leaf emergency exit and panic doors
  • Doors along escape and rescue routes
  • Fire and smoke protection doors (with MST 210 motor lock control)
  • Smoke and heat extraction system fresh air doors
  • Access control systems
  • Can be combined with GEZE automatic swing door systems

Technical data

IQ lock EL
DIN direction left / right
Service temperature -10 - 50 °C
Motor-driven unlocking < 1 s
Panic function / mechanical self-locking Yes
Divided cross latch (3 mm gap between latch and bolt) Yes
Electric sequential control Yes
Three modes of operation (daytime operation / permanently unlocked / permanently night) Yes
Feedback contacts for lock states Yes
Optional sabotage monitoring or cylinder contact Yes
Activation External contact
Current consumption 80 mA at 24V / 400 mA at 24V short-term, 160 mA at 12V / 1 A at 12V short-term
Contact rating 30 V / 500 mA
Resistant to forcing 10000 N
Connector cable length 15 m
