| Ident-No. |
Description |
Face plate dimensions |
Dimensions |
Operating voltage |
DIN direction |
Type of installation |
| 158907 |
Face plate 22 x 220 x 3 mm, rectangular / for tubular-framed doors / Face plate pre-mounted / DIN direction: L/R universal / Dimensions FTV 320: 15 x 139 x 37 mm / Design: fail-safe / Operating voltage: 24 V DC / Current consumption locked: 100 mA / Resistance against breaking open at least 5 kN / Side-load: at least 3 kN / Service temperature: -20 to +60 °C |
22 x 220 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
| 158908 |
Face plate 24 x 200 x 3 mm, rectangular / for tubular-framed doors / Face plate pre-mounted / DIN direction: L/R universal / Dimensions FTV 320: 15 x 139 x 37 mm / Design: fail-safe / Operating voltage: 24 V DC / Current consumption locked: 100 mA / Resistance against breaking open at least 5 kN / Side-load: at least 3 kN / Service temperature: -20 to +60 °C |
24 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |

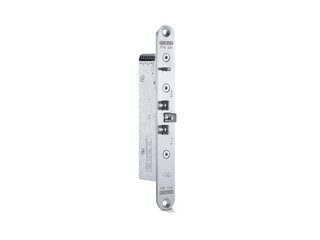

| 158906 |
Face plate 20 x 200 x 3 mm, round / for solid leaf doors (wood) / Face plate pre-mounted / DIN direction: L/R universal / Dimensions FTV 320: 15 x 139 x 37 mm / Design: fail-safe / Operating voltage: 24 V DC / Current consumption locked: 100 mA / Resistance against breaking open at least 5 kN / Side-load: at least 3 kN / Service temperature: -20 to +60 °C |
20 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
| 158911 |
Face plate 30 x 200 x 3 mm, rectangular for tubular-framed doors / Face plate pre-mounted / DIN direction: L/R universal / Dimensions FTV 320: 15 x 139 x 37 mm / Design: fail-safe / Operating voltage: 24 V DC / Current consumption locked: 100 mA / Resistance against breaking open at least 5 kN / Side-load: at least 3 kN / Service temperature: -20 to +60 °C |
30 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
| 158914 |
Face plate with lock latch guide 35 x 200 x 3 mm, rectangular, exchange variant FTÖ 331 / Face plate pre-mounted / DIN direction: L/R universal / Dimensions FTV 320: 15 x 139 x 37 mm / Design: fail-safe / Operating voltage: 24 V DC / Current consumption locked: 100 mA / Resistance against breaking open at least 5 kN / Side-load: at least 3 kN / Service temperature: -20 to +60 °C |
35 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
| 158912 |
Angled face plate 30 x 48 x 220 x 3 mm, rectangular / Alternative version FTÖ 331 / Face plate pre-mounted / DIN direction: L/R universal / Dimensions FTV 320: 15 x 139 x 37 mm / Design: fail-safe / Operating voltage: 24 V DC / Current consumption locked: 100 mA / Resistance against breaking open at least 5 kN / Side-load: at least 3 kN / Service temperature: -20 to +60 °C |
30 x 48 x 220 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
| 158910 |
Face plate 28 x 200 x 3 mm, rectangular / for tubular-framed doors / Face plate pre-mounted / DIN direction: L/R universal / Dimensions FTV 320: 15 x 139 x 37 mm / Design: fail-safe / Operating voltage: 24 V DC / Current consumption locked: 100 mA / Resistance against breaking open at least 5 kN / Side-load: at least 3 kN / Service temperature: -20 to +60 °C |
28 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |

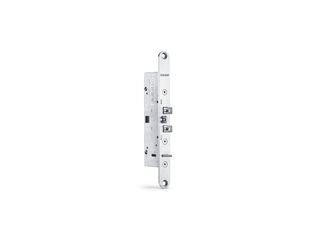

| 158909 |
Face plate 24 x 200 x 3 mm, round / for solid leaf doors (steel) / Face plate pre-mounted / DIN direction: L/R universal / Dimensions FTV 320: 15 x 139 x 37 mm / Design: fail-safe / Operating voltage: 24 V DC / Current consumption locked: 100 mA / Resistance against breaking open at least 5 kN / Side-load: at least 3 kN / Service temperature: -20 to +60 °C |
24 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
| 158913 |
Face plate 25 x 200 x 3 mm, rectangular, exchange variant FTÖ 331 / Face plate pre-mounted / DIN direction: L/R universal / Dimensions FTV 320: 15 x 139 x 37 mm / Design: fail-safe / Operating voltage: 24 V DC / Current consumption locked: 100 mA / Resistance against breaking open at least 5 kN / Side-load: at least 3 kN / Service temperature: -20 to +60 °C |
25 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
