Connectivity possible for door control units - TZ 320 Series

TZ 320 S UP * Door control unit for controlling escape route doors with key switch

TZ 320 S, flush-mounting Jung AS 500 white SecuLogic emergency exit system, Flush-mounted control unit in the switch programme Jung AS 500, TST 320 control unit with emergency push button and key switch
  • Flat impact cover enables fast and safe activation of the illuminated emergency push button in panic situations
  • Coloured connectors facilitate electrical connection
  • Three freely configurable inputs and two freely configurable outputs offer numerous possibilities for additional components
  • Number of inputs and outputs can be expanded using the IO 420 interface module or the KL 220 clamping box
  • Compact design with only two flush-mounted sockets
  • Integrated key switch enables authorised passing through the emergency exit
Contact us

TZ 320 S UP

Application Areas

  • EltVTR-compliant protection of an emergency exit against unauthorised access
  • Can be used on single and double leaf doors
  • Connectivity via bus enables e.g. interlocking door system control, forwarding of alarms, connection to building management system
  • Can be combined with motor locks and swing door drives
  • Realisation of a bidirectional emergency exit
  • Flush-mounted installation ensures seamless integration into the building

Installation situations in reference objects and videos

Swing door drive TSA 160 NT F-IS, GC334 sensor strip and the RWS TZ320 SN AP door control unit Electro-hydraulic swing door drive system for 2-leaf fire and smoke protection doors with integrated closing sequence control in the Augustinum retirement complex, Stuttgart.

Swing door drive TSA 160 NT F-IS, GC334 sensor strip and the RWS TZ320 SN AP door control unit

Electro-hydraulic swing door drive system for 2-leaf fire and smoke protection doors with integrated closing sequence control in the Augustinum retirement complex, Stuttgart. © Dirk Wilhelmy / GEZE GmbH

TZ 320 emergency exit control in Olgahospital Deployment of the TZ 320 emergency exit control at the Olgahospital, Stuttgart.

TZ 320 emergency exit control in Olgahospital

Deployment of the TZ 320 emergency exit control at the Olgahospital, Stuttgart. © Jürgen Pollak / GEZE GmbH

Technical data

TZ 320 S UP
Width 81 mm
Height 152 mm
Type of installation Flush-mounted installation
Service temperature -10 - 55 °C
IP rating IP30
Operating voltage 24 V DC
Current consumption 130 mA
Supply voltage 24 V DC
Contact rating 30 V / 1 A
Sabotage contact Yes
Number of inputs 3 Stk.
Number of outputs 2 Stk.
Emergency push button Yes
Visual display yes
Volume 75 db
Type of cylinder Euro profile half cylinder
With ribbon cable Yes
Parameter setting Service terminal ST 220
Conforms to the EltVTR (guidelines for electronic locking systems) Yes

Downloads

Emergency exit control TZ 320 at Vitra House at Vitra House, Weil am Rhein.

LABELLING OBLIGATION:  © Oliver Look / GEZE GmbH

Installation situation (46491)
Emergency exit control TZ 320 at Vitra House, Weil am Rhein.

LABELLING OBLIGATION:  © Oliver Look / GEZE GmbH

Installation situation (47421)

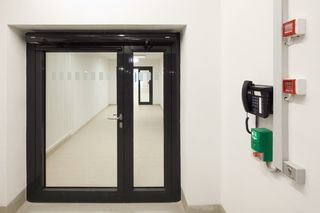

Swing door drive TSA 160 NT F-IS, GC334 sensor strip and the door control unit RWS TZ320 SN surface mounting

LABELLING OBLIGATION:  © Dirk Wilhelmy / GEZE GmbH

Installation situation (44558)

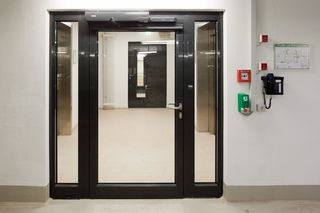

Swing door drive TSA 160 NT F-IS, GC334 sensor strip and the RWS TZ320 SN AP door control unit

LABELLING OBLIGATION:  © Dirk Wilhelmy / GEZE GmbH

Installation situation (44459)
TZ 320 S, flush-mounting Gira E2 white

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (396147)
TZ 320 S, flush-mounting Jung AS 500 white

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (396148)
Sample case TZ 320

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (534505)
TST 320

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (50463)
TZ 320 AP

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (45368)
TZ 320 surface mounting with LED

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (44647)
TZ S UP E2

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (396151)
TZ S UP LS 990, alpine white

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (1784488)

Variants & Accessories

Key switch SCT 220 UP
Accessories

SCT 220 UP

Key switch for authorised activation and changing the mode of operation of automatic doors, flush-mounted

Product details
SCT 320 UP white
Accessories

SCT 320 UP

Key switch for authorised activation and for changing the mode of operation of automatic doors, flush-mounted

Product details
Key switch SCT 222 with LEDs
Accessories

SCT 222

Key switch for authorised activation and changing the mode of operation of automatic doors, surface and flush-mounted

Product details
